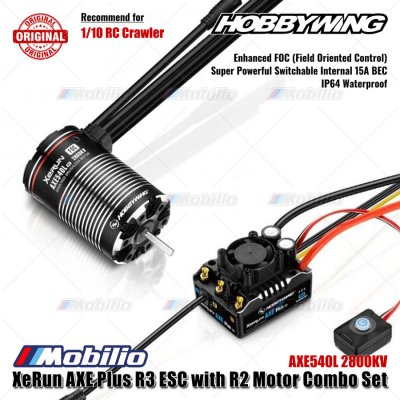

Hobbywing XeRun AXE Plus R3 ESC with AXE540L 2800KV / AXE550L 3300KV R2 Motor FOC Waterproof Combo Set

Hobbywing XeRun AXE Plus R3 ESC with AXE540L 2800KV / AXE550L 3300KV R2 Motor FOC Waterproof Combo Set

Features :
- Field Oriented Control (FOC) system with buttery smooth powerful torque
- Intelligent torque output and speed closed-loop control
- Increased maximum power output by 106% and efficiency by 11%
- Super powerful switchable internal 15A BEC
- Adjustable drag brake & drag brake rate with a maximum drag brake of up to 200%
- Built-in Bluetooth module & data logging functions
- Dual external control channels, real-time adjustment of parameters
- IP67 waterproof and dust-proof design
- CNC-machined finned aluminum

ESC :
- Suggested Application 1/10-1/6 Rock Crawlers
- Battery Connector : XT60
- Input Voltage : 2-6S LiPo (7.4-22.2V)
- Continuous Current : 135A
- Burst Current : 600A
- BEC Voltage : 6-8.4V
- BEC Continuous Current : 6A
- BEC Peak Current : 15A
- Dimensions : 1.94x1.49x1.29in (49.5x37.9x32.8mm)
- Weight : 4.461oz (126.5g)

Motor
Type
- Scale : 1/10th
- Brushed/Brushless : BL
- Sensored/Sensorless : SD
- Pole Count : 4
Relevant Parameters
- KV Rating / LiPo Cells / No-load Current(A) : (2300/2-3S/2.5) / (2100/2-3S/2.7) / (2800/2-3S/3.6) / 3300/2-3S/4.7
Size & Weight
- O.D.(mm) : 36(1.42in)
- Length (mm) : 57.8(2.28in) / 3300KV- 63.8(2.51in)
- Shaft Diameter (mm) : 3.175(0.125in) / 3300KV- 5(0.197in)
- Weight (g) : 233g / 3300KV- 268g

Includes :
1x Xerun AXE Plus R3 Sensored Brushless ESC
1x Brushless Sensored Motor (2100kV / 2300kV / 2800kV / 3300kV)
Product Manual
