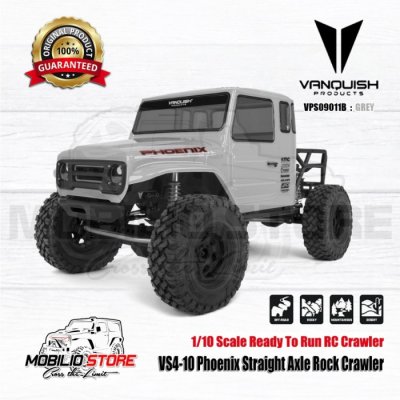

Vanquish VS4-10 Phoenix Straight Axle RTR Rock Crawler RC 1/10 Scale

Vanquish VS4-10 Phoenix Straight Axle RTR Rock Crawler RC 1/10 Scale

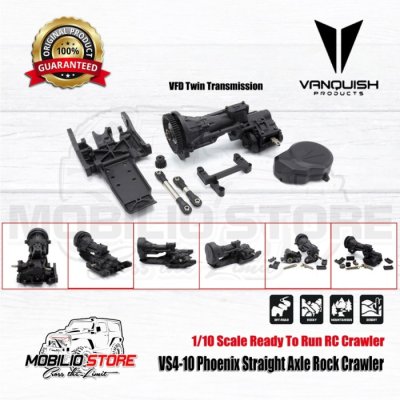

The VS4-10 Phoenix RTR is the first RTR platform from Vanquish Products. Features the VFD Twin transmission and F10 Straight Axles. Included is a full function digital 4 Channel VT-1 Transmitter with multiple model memory and end point adjustment, making the VS4-10 Phoenix RTR ready to be equipped for fully functioning Dig and Selectable OD. Or run it out of the box with 6% OD powered by a 35T VM-1 Motor and VE-1 3S capable ESC. The large diameter Stainless Steel links bring high end Vanquish Products kit quality to the RTR market. The drivetrain is equiped with machined ring and pinion gears, chromoly universal axle shafts, and chromoly 6-bolt spools for the ultimate in durability. Full ball bearings, metal transmission gears and 32P spur / pinion provide smooth and reliable performance when tackling the toughest terrain.

Specifications :
- Scale: 1/10
- Width: 9.53in (242mm)
- Front/Rear Axle Width (Pin to Pin): 7.17in (182mm)
- Height: 9.53in (242mm)
- Wheelbase: 12.32in (313mm)
- Pinion Gear: 13T
- Spur Gear: 56T
- Front Ratio:
- Standard: 47.6:1
- High (33% OD): 31.8:1
- Rear Ratio: 50.8:1
- Axle Gear Ratio: 3.75:1
- RTR Weight: 5.9lbs (2.7kg)

Includes :
1x Vanquish VS4-10 Phoenix Straight Axle RTR Rock Crawler with:
1x VE-1 Brushed ESC
1x VM-1 35T Brushed Motor
1x VS-1 Steering Servo
1x VT-1 Digital 4-Channel Transmitter
1x Product Manual

Needed to Complete :
- 2-3S LiPo Battery or (1) 6-Cell NiMH Battery with XT60 Connector
- Compatible Battery Charger

Additional Electronics for VFD Twin Functionality:
(2) Standard size servos for Dig and Selectable Overdrive (Standard or Low Profile)
(2) 24mm servo horns

Contact our customer service if you need more information.
