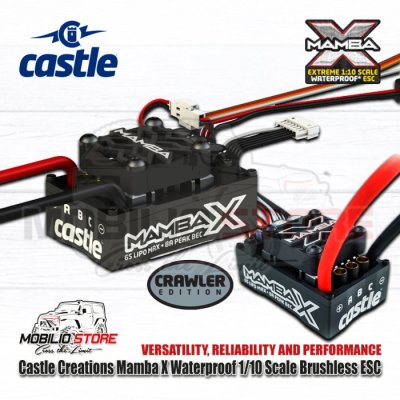

Castle Creations Mamba X Brushless Waterproof 1/10 Scale ESC

The MAMBA X EXTREME ESC paired with sensored motor is ideal for LOW SPEED CRAWLING OR TRAIL RUNNING in vehicles weighing up to 9lbs on 2s-4s; it can also be used in more aggressive setups like rock racing and extended hill climbing on vehicles up to 5lbs.Safety Information: Applying voltages higher than 25.2V will cause irreparable damage to ESC.

ESC:
Input Voltage Range: 2S LiPo (7.4V) to 6S LiPo (25.2V)
BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Operating Environment: Waterproof* design allows for use in nearly any environment.
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes
Cooling Fan: Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)
Size (LxWxH): 2.14x1.39x1.18" (54.4x35.2x30.0mm)
Weight (with wires): 3.56 oz. (101g)
Connectors: 4.0mm female bullets for motor connection.
Items Needed for Operation: Battery Connector
Application Guidelines: Intended for up to 6S (25.2 Volt) operation in vehicles weighing less than 9bs/4kg
Recommended Motors: Castle 1406, 1410 and 1415 Sensored motors
Max. Recommended Vehicle Weight: Less than 9bs/4kg, with batteries, ready-to-run
Telemetry Link Capable: Yes
Programmability: Fully programmable Castle feature set using Castle Link USB adapter and freely downloadable Castle Link Windows software.

MAMBA X EXTREME ESC PRODUCT USE STATEMENTS
- Although Mamba X is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt.
- The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
- Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.
- Applying voltages higher than 25.2V will cause irreparable damage to ESC.
