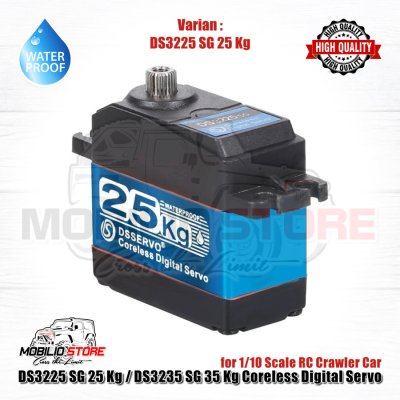

DS3225 SG 25 Kg / DS3235 SG 35 Kg Coreless Digital Servo for RC Car - DS3225 SG

DS3225 SG 25 Kg / DS3235 SG 35 Kg Coreless Digital Servo

Features :
- Suitable for 1/10 1/8 scale RC Crawler / Buggy / Truck and any application where standard servos.
- High precision potentiometers and High-resolution digital chip, stable performance, strong anti-interference ability, fast response, control is more delicate and smooth operation.
- Full servo to maintain good tightness in wet conditions.
- The Coreless motor provides high speed, response, incredible efficiency and low power consumption.

Electrical Specifications :

DS3225 SG 25 Kg
- Operating voltage range : 5-7.4V
- Operating speed (5.0V) : 0.1 seconds/60 degrees
- Operating speed (6.0V) : 0.08 seconds/60 degrees
- Operating speed (7.4V) : 0.07 seconds/60 degrees
- Torque (5.0V ) : 22 kg/cm
- Torque (6.0V ) : 24kg/cm
- Torque (7.4V) : 25.5kg/cm

DS3235 SG 35 Kg
- Operating voltage range : 5-7.4V
- Operating speed (5.0V) : 0.13 seconds/60 degrees
- Operating speed (6.0V) : 0.12 seconds/60 degrees
- Operating speed (7.4V) : 0.11 seconds/60 degrees
- Torque (5.0V ) : 29 kg/cm
- Torque (6.0V ) : 32kg/cm
- Torque (7.4V) : 35kg/cm

Control Specification :
- Control System : PWM (Pulse width modification)
- Pulse width range : 500-2500μsec
- Neutral position : 1500μsec
- Running degree : 180° (when 500-2500μsec)
- Dead band width : 3μsec
- Operating frequency : 50-330Hz
- Rotating direction : Counterclockwise (when 500~2500μsec)
- Gear ratio : 275
- Bearing : Double bearing
- Connector wire : 11.22inches(285mm)
- Motor : 3-pole(s)
- Waterproof performance : IP66
- Motor Type : Coreless Motor
- Gear Type : Stainless Steel & Aluminum

Package :
1x DS3225SSG 180° Coreless Servo

Contact our customer service if more information is needed.
