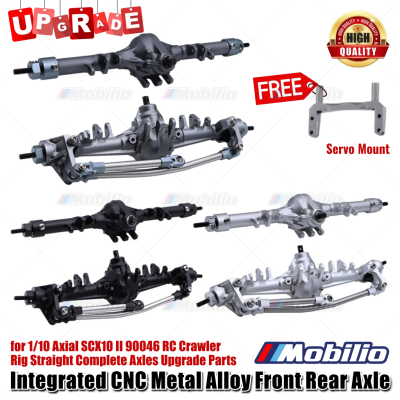

Gardan Upgrade CNC Metal Alloy Front Rear Axle for 1/10 Axial SCX10 II

Integrated CNC Aluminum Front Rear Axle For 1/10 Axial SCX10 II 90046 RC Crawler Rig Straight Complete Axles Upgrade Parts

Features :
CNC Machined,made of High Quality Material.
Black/Silver/Gray Anodized

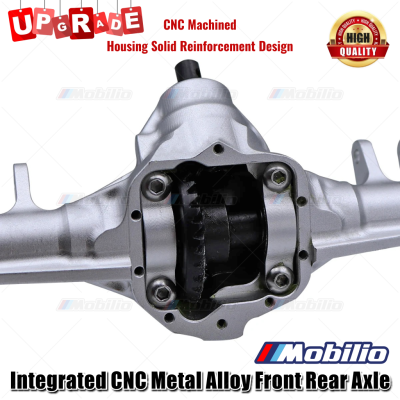

Housing Solid Reinforcement Design, Scale Appearance
Integrated C-Hub Design
Integrated Panhard Mount
Upper Link Mounts Built into Differential Cover
Increased Upper Link Clearance for More Suspension Up Travel Ability
Compatible with Factory Axial SCX10 II Links
Heavy Duty Hardened Steel Bevel Gear Set(30/8T)
Hardened Steel Universal Axle and Straight Axle

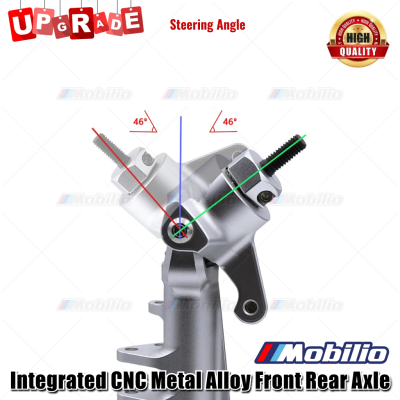

Up to 46 Degrees of Steering
Smooth Action for an Efficient Drivetrain
Stainless Steel Steering/Servo Link
Quality CNC Aluminum Rod Ends


Specifications :
- Material : 6061 Aluminum
- Color : Black/Silver/Titanium

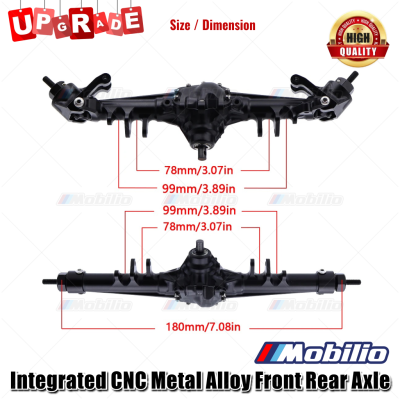

- Total Length : 215mm
- Pin to Pin : 180mm
- Pumpkin Height : 36mm
- Input Pinion Shaft : 5mm
- Gear Ratio : 3.75 : 1
- Kingpin Inclination : 8 Degrees
- Kingpin Caster : 12 Degrees
- Weight (Front Axle) : 230g
- Weight (Rear Axle) : 150g

Packing List :
As show

Contact our customer service if you need more information.
