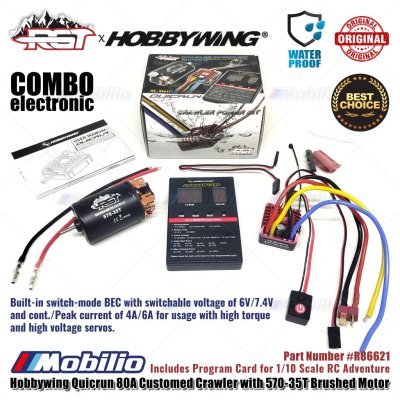

RGT Part #R86621 Hobbywing Quicrun 80A Customed Crawler Power KIT with 570-35T Brushed Motor Combo Electronic RC 1/10 Adventure

Crawler Power KIT

RGT Part #R86621 Hobbywing Quicrun 80A Customed Crawler with 570-35T Brushed Motor Combo Electronic RC 1/10 Adventure

Features :

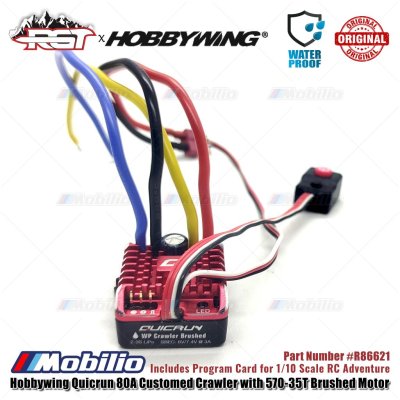

"Hobbywing QUICRUN" 80A customed crawler ESC

• Fully waterproof design for all conditions.
• Built-in switch-mode BEC with switchable voltage of 6V/7.4V and cont./Peak current of 4A/6A for usage with high torque and high voltage servos.
• Tunable drag brake and drag brake rate for different vehicles, tracks and control feel. Adjustable PWM frequency combined with advanced freewheeling (/DEO) technology guarantees great throttle linearity and driving feel.
• 9 levels of acceleration/pun from soft to aggressive for different vehicles.
• Proportional brake with 9 levels of initial brake force, maximum brake force and drag brake force.
• Multiple protections low-voltage cutoff protection, thermal protection, and throttle signal loss protection.
• Separate programming port to easily connect the LED program card to the ESC. Single-button ESC programming and factory reset.

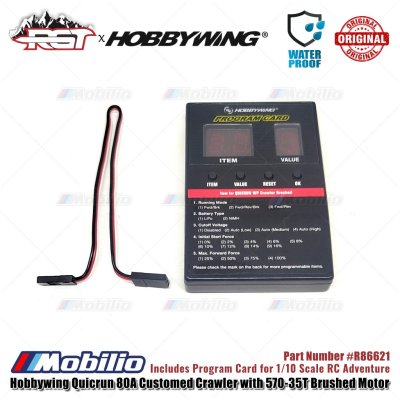

• ESC programming via Hobbywing LED program card.

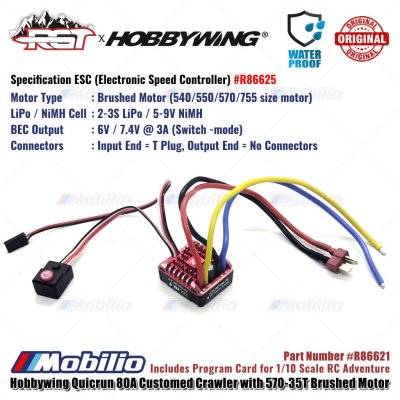

Specification ESC (Electronic Speed Controller) #R86625 :

• Motor Type : Brushed Motor (540/550/570/755 size motor)
• LiPo / NiMH Cell : 2-3S LiPo / 5-9V NiMH
• BEC Output : 6V / 7.4V @ 3A (Switch -mode)
• Connectors : Input End = T Plug, Output End = No Connectors

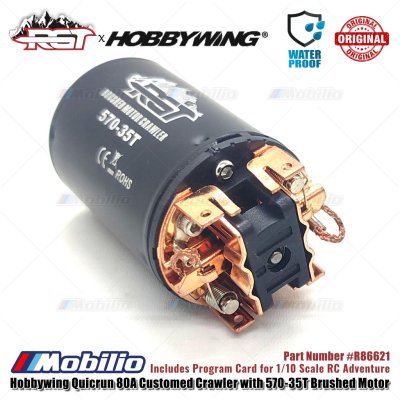

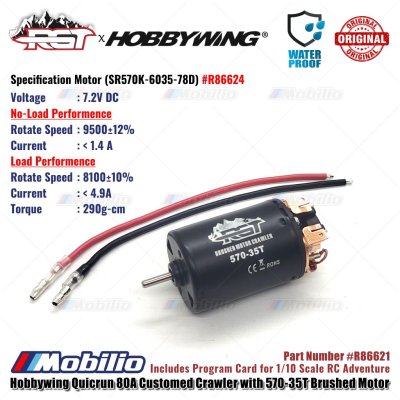

Specification Motor (SR570K-6035-78D) #R86624 :

• Voltage : 7.2V DC
• No-Load Performence
• Rotate Speed : 9500±12%
• Current : < 1.4 ALoad Performence
• Rotate Speed : 8100±10%- Current : < 4.9A
• Torque : 290g-cm


Package Includes :

• 1x ESC Hobbywing quicrun 80A customed crawler
• 1x 570-35T brushed motor
• 1x Program card Hobbywing1x Manual book


*Need 2 female connectors (skun motor) for motor cable
