Surpass Hobby Rocket-RC Brushless Motor 2948 / 2958 / 2968 / 3660 / 3670 / 4074 4 Poles 12 Slot Waterproof for RC Boat Remote Control

Surpass Hobby Rocket-RC Brushless Motor 2948 / 2958 / 2968 / 3660 / 3670 / 4074 4 Poles 12 Slot Waterproof for RC Boat Remote Control

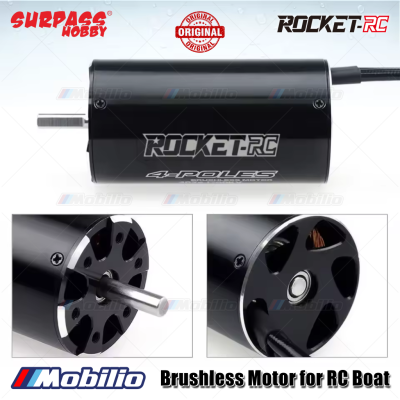

The original Rocket 2948 / 2958 / 2968 / 3660 / 3670 / 4074 4 poles sensorless brushless motor is designed to provide both quality and performance at an affordable price.

It is built from high quality aluminum alloy which is produced from the latest CNC milling machines, and is designed with high power and rotation speed to provide longer run time for 800-1000mm RC boat.

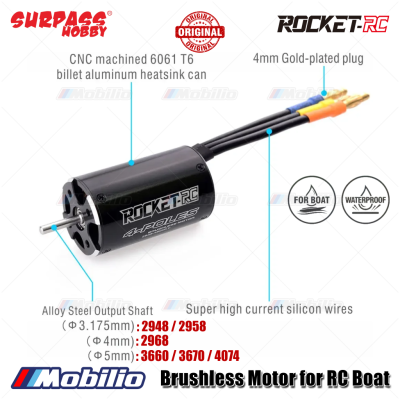

Features :
- 4 Pole 12 slot hi-torque motor design
- CNC machined 6061 T6 billet aluminum heatsink can
- High purity copper windings maximizes efficiency
- High RPM ABEC5 oversized bearings
- Precision balanced rotor, smoothness for best reliability and maximum RPM
- Stator-super thin (0.2mm) laminations
- Removable/replaceable rotor
- Precision engineered for maximum energy conversion

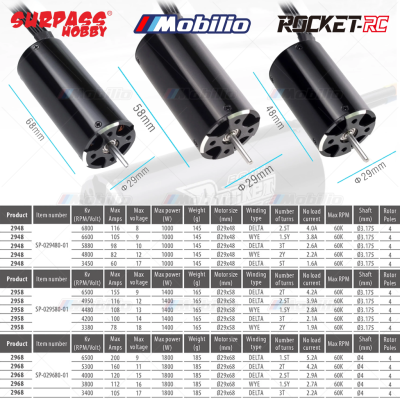

2948 Specifications :
- Brand name : Rocket
- KV(RPM/Volt) : 4800/5880/6600/6800KV (Optional)
- Watt : 1000W
- No load current : 1.6A-2.2A
- Max voltage : 17V-12V
- Diameter : 29mm
- Length : 48mm
- Shaft diameter : 3.175mm
- Connector : 4mm golden banana connector
- Weight : 160g

2958 Specifications :
- Brand name : Rocket
- KV(RPM/Volt) : 4200/4480/4950/6500KV (Optional)
- Watt : 1400W
- No load current : 1.9A-2.8A
- Max voltage : 18V-13V
- Diameter : 29mm
- Length : 58mm
- Shaft diameter : 3.175mm
- Connector : 4mm golden banana connector
- Weight : 190g

2968 Specifications :
- Brand name : Rocket
- KV(RPM/Volt) : 5300/6500KV (Optional)
- Watt : 1800W
- No load current : 2.2A-2.9A
- Max voltage : 17V-15V
- Diameter : 29mm
- Length : 68mm
- Shaft diameter : 4mm
- Connector : 4mm golden banana connector
- Weight : 220g

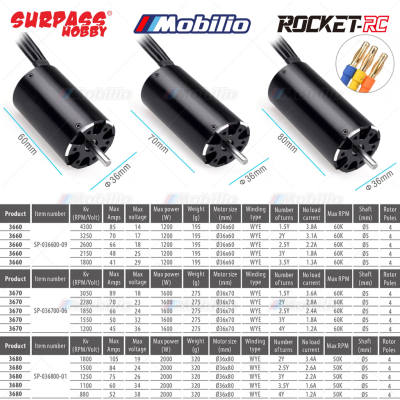

3660 Specifications :
- Brand name : Rocket
- KV(RPM/Volt) : 4300KV
- Watt : 1200W
- No load current : 2.2A-3.1A
- Max voltage : 18V-17V
- Diameter : 36mm
- Length : 60mm
- Shaft diameter : 5mm
- Connector : 4mm golden banana connector
- Weight : 246g

3670 Specifications :
- Brand name: Rocket
- KV(RPM/Volt): 3050KV
- Watt: 1600W
- No load current: 2.4A-2.8A
- Max voltage: 24V-23V
- Diameter: 36mm
- Length: 70mm
- Shaft diameter: 5mm
- Connector: 4mm golden banana connector

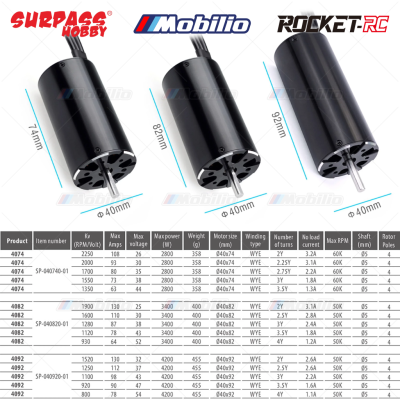

4074 Specifications :
- Brand name : Rocket
- KV(RPM/Volt) : 2250KV
- Watt : 2800W
- No load current : 2.2A-3.2A
- Max voltage : 35V-26V
- Diameter : 40mm
- Length : 74mm
- Shaft diameter : 5mm
- Connector : 4mm golden banana connector

Package List:
1x 2948 / 2958 / 2968 / 3660 / 3670 / 4074 Rocket Brushless Motor

Contact our customer service if you need more information.
