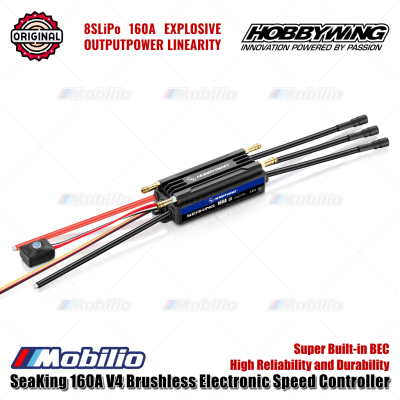

Hobbywing SeaKing 160A V4 Brushless Electronic Speed Controller ESC for RC Boat around 120cm Remote Control

Hobbywing SeaKing 160A V4 Brushless Electronic Speed Controller ESC for RC Boat around 120cm Remote Control

- Product Name : Seaking 160A V4
- Product Number : 30206200

Type
- Brushed/Brushless : BL
- Sensored/Sensorless : SL
- Waterproof : Waterproof

Specifications
- Cont./Peak Current : 160A/800A
- Input Voltage : 3-8S Lipo
- BEC Output : Switch mode 6V/7.4V/8.4V @8A

Wires & Connectors
- Input Wires : Red-10AWG-160mm*1,Black-10AWG-160mm*1
- Output Wires : Black-12AWG-150mm*3
- Input Connectors : No
- Output Connectors : 6.5mm Gold female plug

ESC Programing via
- LED Program Box : Not Supported
- LCD G2 Program Box : Not Supported
- LCD PRO : Not Supported
- OTA Programmer : Not Supported

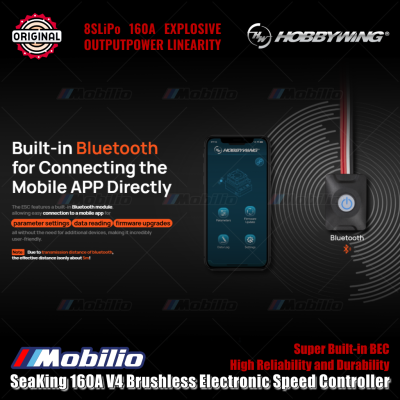

- Program Port : Built-in Bluetooth

Data Recording
- Extreme value : Supported

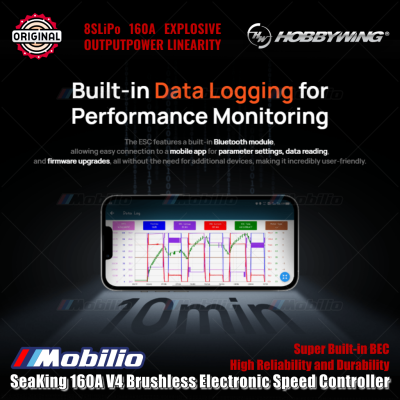

- Real-time Data : Supported
- Historical data (Graph) : Supported

Firmware
- Firmware Upgrade : Supported

Size & Weight
- Size : 91*41*25.5mm
- Weight : 220g(Including wire and output plug)

Applications
- Boat Applicable : 120CM

Packages :
1x SeaKing 160A V4 Brushless Electronic Speed Controller ESC

Contact our customer service if you need more information.
