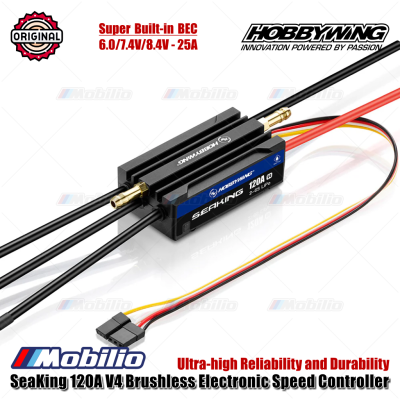

Hobbywing SeaKing 120A V4 Brushless Electronic Speed Controller ESC for Boat Around 100cm Remote Control

Hobbywing SeaKing 120A V4 Brushless Electronic Speed Controller ESC for Boat Around 100cm Remote Control

Features :
- Excellent waterproof performance(IP67). Users can use it directly without any waterproof treatment (note: if water enters after use, please blow dry each plug to prevent rusting).
- Built-in ultra-powerful switch mode BEC and adjustable voltage, supporting high torque and high voltage servos.

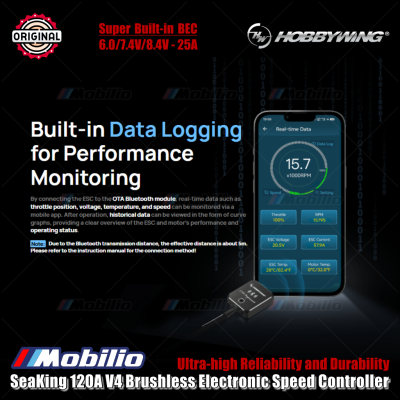

- Data logging function to view various running data on the HW LINK app.

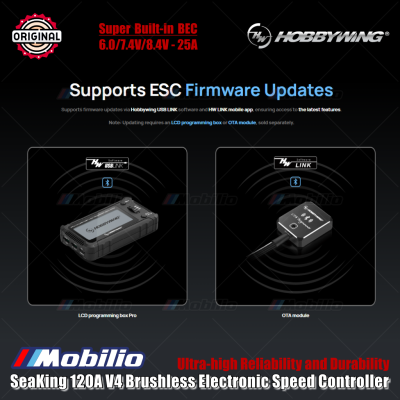

- Supports the firmware upgrade of the ESC, you can enjoy the latest functions.

Specifications
- Product Name : Seaking 120A V4
- Product Number : 30302363

Type
- Brushed/Brushless : BL
- Sensored/Sensorless : SL
- Waterproof : Waterproof

Specifications
- Cont./Peak Current : 120A/500A
- Input Voltage : 2-6S Lipo
- BEC Output : 6V/7.4V/8.4V @8A

Wires & Connectors
- Input Wires : Red-12AWG-150mmx1,Black-12AWG-150mmx1
- Output Wires : Black-12AWG-100mmx3
- Input Connectors : No
- Output Connectors : 4.0mm Gold female plug

ESC Programing via
- LED Program Box : Supported
- LCD G2 Program Box : Supported
- LCD PRO : Supported
- OTA Programmer : Supported
- Program Port : Throttle signal wire+Yellow signal cable

Data Recording
- Extreme value : Supported
- Real-time Data : Supported
- Historical data (Graph) : Supported

Firmware
- Firmware Upgrade : Supported

Size & Weight

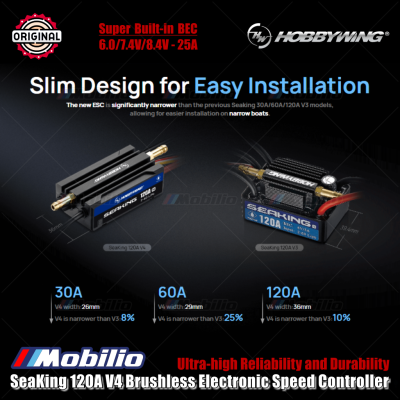

- Size : 64.7x36.3x22.5mm
- Weight : 123.5g(Including wire and output plug)

Applications
- Boat Applicable : 100CM

Packages :
1x SeaKing 120A V4 Brushless Electronic Speed Controller ESC
