Hobbywing SeaKing 4685SL Brushless Motor 1500kV for Work with SeaKing 200A HV V4 Controllers

Hobbywing SeaKing 4685SL Brushless Motor 1500kV for Work with SeaKing 200A HV V4 Controllers

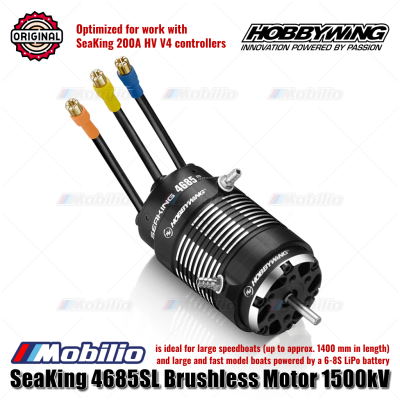

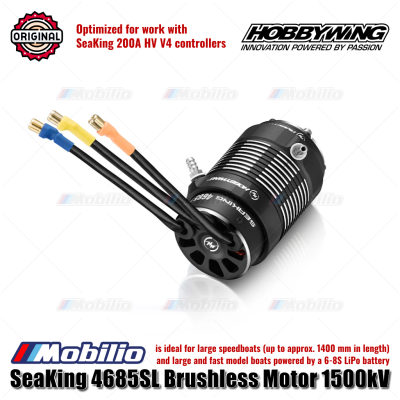

The high-performance four-pole sensorless brushless electric motor SEAKING 4685SL 1500KV V2 is ideal for large speedboats (up to approx. 1400 mm in length) and large and fast model boats powered by a 6-8S LiPo battery. It is optimized for use with HOBBYWING SEAKING 200A HV V4 controllers. The motor is equipped with water cooling and, thanks to its modular design, allows for easy maintenance and repairs. If you want to treat your model to a high-performance motor with a longer lifespan and greater adjustment options in cooperation with an intelligent controller, the SEAKING 4685SL 1500KV V2 is the right one for you!

Features :
- Optimized for work with HOBBYWING SEAKING 200A HV V4 controllers.
- For powering from 6-8S LiPo.
- Highly stable power and torque curve across the entire operating speed range.
- CNC machined aluminum alloy housing with integrated water cooling, high purity copper wire winding, advanced rotor design, 0.2 mm silicon steel sheets, high quality stainless steel shaft, Kevlar wrapped rotor, precision ball bearings for high durability and smooth operation.
- Modular design for easy maintenance and repair/replacement of parts.

Specifications :
- Engine type : Alternate
- Revolutions per volt [rpm/V] : 1500
- Li-Po [cell] : 6 - 8
- No-load current [A] : 4.7
- Number of poles : 4
- Diameter [mm] : 46
- Motor housing length [mm] : 85
- Shaft diameter [mm] : 5
- Free shaft length [mm] : 20
- Weight [g] : 642
- Timing [°] : 0
- Hall probe : No

Kit includes :
SEAKING 4685SL 1500KV V2 motor, manual.
