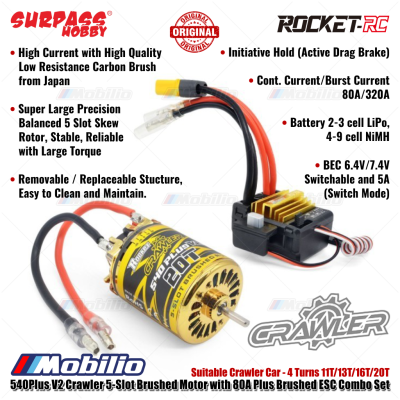

Surpass Hobby Rocket-RC 540Plus V2 Crawler 5-Slot Brushed Motor with 80A Plus Brushed ESC Combo Set Suitable Crawler Car 4 Turns 11T/13T/16T/20T Remote Control

Surpass Hobby Rocket-RC 540Plus V2 Crawler 5-Slot Brushed Motor with 80A Plus Brushed ESC Combo Set Suitable Crawler Car 4 Turns 11T/13T/16T/20T Remote Control

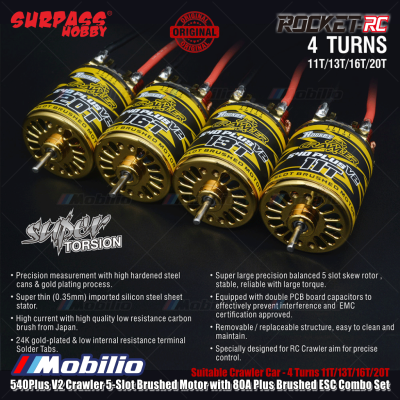

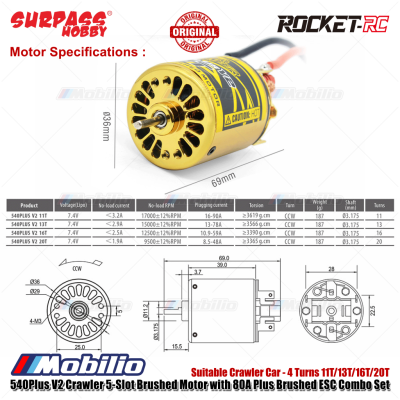

Motor Features :

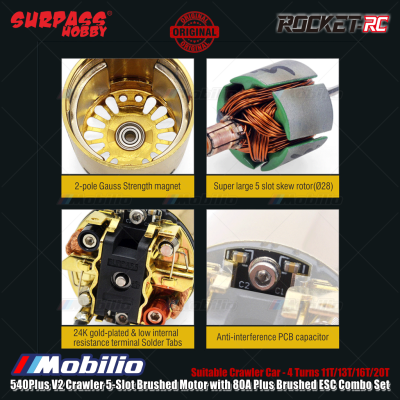

- Precision measurement with high hardened steel cans gold plating process
- Super thin (0. 35mm)imported silicon steel sheet stator
- High current with high quality low resistance carbon brush from Japan
- 24K gold-plated & low internal resistance terminal Solder Tabs
- Super large precision balanced 5 slot skew rotor stable , reliable with large torque

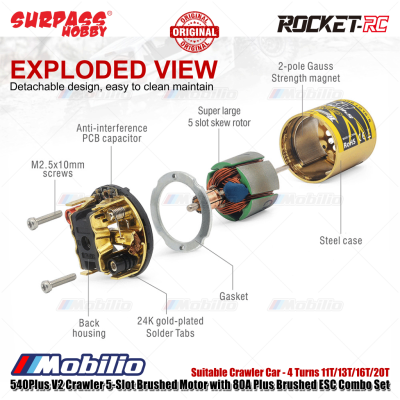

- Equipped with double PCB board capacitors to effectively prevent interference and EMC certification approved- Removable / replaceable structure , easy to clean and maintain
- Specially designed for RC Crawler aim for precise control

540 plus V2 11T
- Voltage(lipo) : 7.4V- NO-load current : < 3.2A
- Current : 16-90A
- WEIGHT : 187
- TURN : CCW
- Shaft : 3.17

5540 plus V2 13T
- Voltage(lipo) : 7.4V- NO-load current :
- Current : 13-78A
- WEIGHT : 187
- TURN : CCW
- Shaft : 3.17

540 plus V2 16T
- Voltage(lipo) : 7.4V- NO-load current :
- Current : 10.9-59A
- WEIGHT : 187
- TURN : CCW
- Shaft : 3.17

5540 plus V2  20T
- Voltage(lipo) : 7.4V
- NO-load current : < 1.9A
- Current : 8.5-48A
- WEIGHT : 187
- TURN : CCW
- Shaft : 3.175

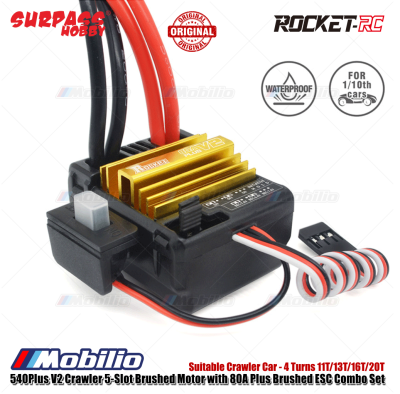

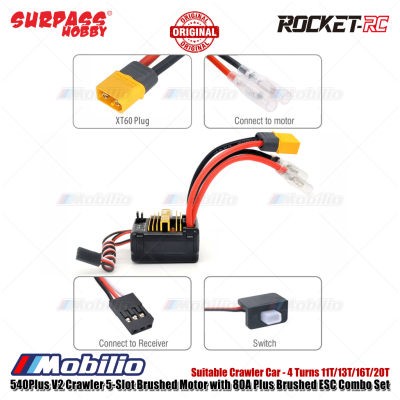

Surpass 80A Plus V2 Crawler Brushed ESC Initiative Hold

Built-in Super Switch Mode BEC, voltage 6.4V/7.4V, current 5A. Continuous 5A current can easily drive powerful steering gears, high-voltage steering gears and winches, etc.

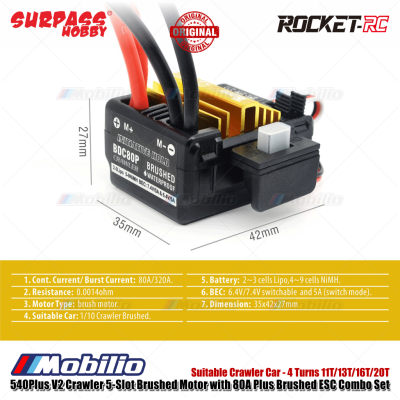

ESC Parameters :
- Model : 80A PLUS V2
- Continuous Current / Peak Current : 80A/320A
- Battery : 2-3S Lipo, 4-9S NIMH
- Internal Resistance : 0. 0014ohm
- BEC : 6.4V / 7.4V Switchable 5A (switch mode)
- ESC Size : 35x42x27mm / 1.4x1.7x1.1in
- Applicable Models : Fit for 1/10 Brushed Crawler
- Recommended Programming Card : 80A PLUS Programming Card V1, V2 Universal

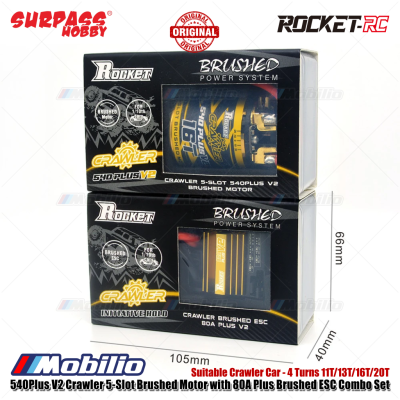

Packages :
1x 540Plus V2 Crawler 5-Slot Brushed Motor with 80A Plus Brushed ESC Combo Set Suitable Crawler Car (11T/13T/16T/20T)
