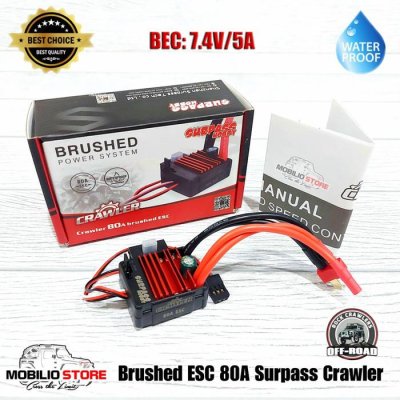

ESC 80A Brushed Surpass Hobby Crawler Electronic Speed Controller

Descriptions:
The function of the electronic speed controllor(ESC) is to control the motor to complete the specified speed and action. High-torque and high-efficiency, low heat production, long lifetime, strong overload protection.

Features:
1.Specially designed for RC Crawler Brushed car with excellent throttle linearity and driving feel.
2.Compatible with brush motor.
The strong resistant current capability, excellent heat dissipation.
3.Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection /
4.Easily programmed and compatible with pocket-sized program card.

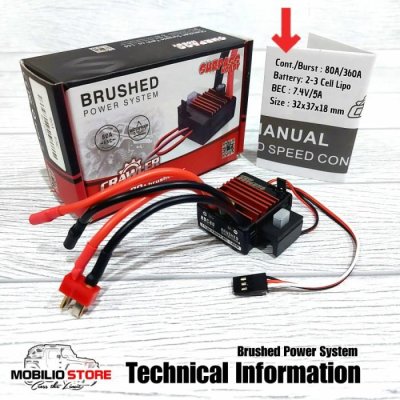

Specifications:
Cont. Current/ Burst Current：80A/360A.
Resistance：0.0014ohm
Motor Type: brush motor.

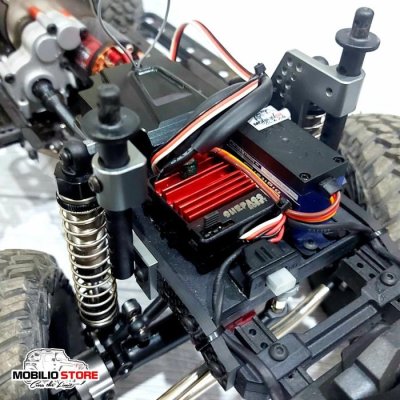

Suitable Car:1/10 Crawler Brushed.
Battery:2~3 cells Lipo,4~9 cells NiMH.
BEC:6V/2A (switch mode).
Dimension：32mm*37mm*18mm

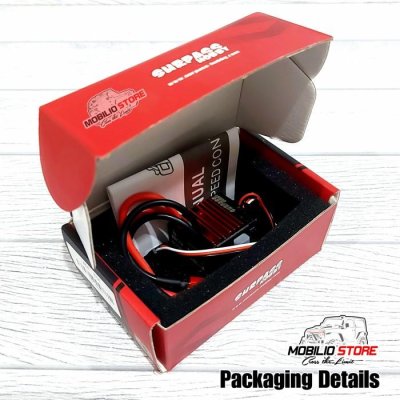

Package Information:
Package size:11*6.8*4.2cm
Package weight:78g
General box Package

Package included:
1 x 80A ESC Surpass Crawler
1 x Instructions

Contact our customer service if you need more information.
