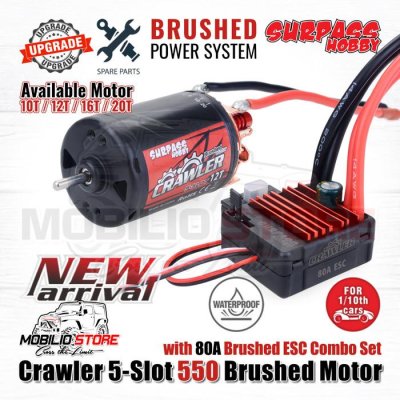

Surpass Crawler 5-Slot 550 Brushed Motor with 80A ESC Combo Waterproof

Crawler 5-slot 550 brushed motor with 80A brushed ESC combo det waterproof

SURPASSHOBBY 5-Slot Brushed 550 Motors are an ideal solution for RC crawler and adventure, high torque and easy maintenance after mudding. The function of the electronic speed controllor(ESC) is to control the motor to complete the specified speed and action. High-torque and high-efficiency, low heat production, long lifetime, strong overload protection.

Features:
- Applicability: Excellent throttle linearity and driving feel.
- High Efficiency: Precision balanced rotor, smoothness for best reliability and maximum RPM.
- Heat Dissipation: Low internal resistance, strong resistant current capability, excellent hest dissipation.
- Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection /
- Easily programmed and compatible with pocket-sized program card.

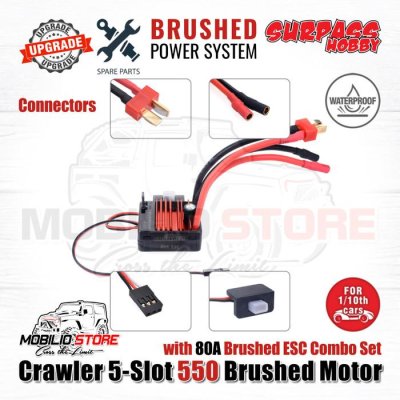

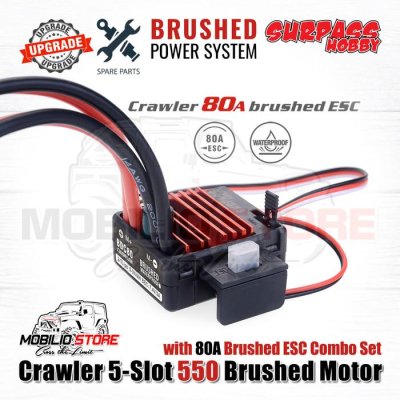

Specification ESC:
- Cont. Current/ Burst Current : 80A/360A.
- Resistance : 0.0014ohm
- Motor Type : brush motor
- Suitable Car :1/10 Crawler Brushed
- Battery : 2~3 cells Lipo,4~9 cells NiMH
- BEC : 7.4V/2A
- Dimension : 32 x 37 x 18 mm

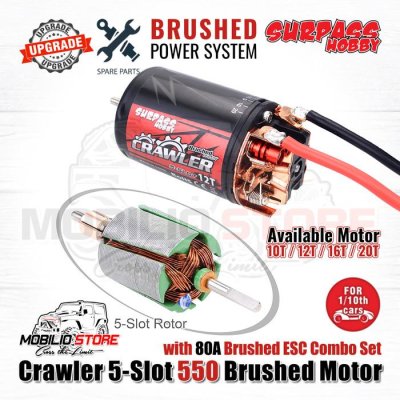

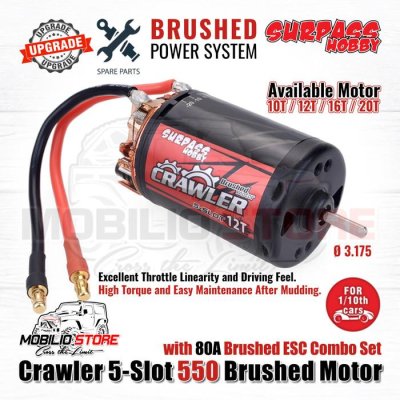

Specification Motor 550 5 Slot :
10T
- Voltage : 7.4V(2S Lipo)
- No-load RPM : 15500±12%
- No-load Current : <2.4A
- Pluggging Current : 11.5-69.9A
- Shaft : 3.175*12mm
- Turn : CCW
- Weight : 215g

12T
- Voltage : 7.4V (2S Lipo)
- No-load RPM : 13000±12%
- No-load Current : <2.1A
- Pluggging Current : 8.9-49.3A
- Shaft : 3.175*12mm
- Turn : CCW
- Weight : 215g

16T
- Voltage : 7.4V (2S Lipo)
- No-load RPM : 9500±12%
- No-load Current : <1.1A
- Pluggging Current : 5.7-30.5A
- Shaft : 3.175*12mm
- Turn : CCW
- Weight : 215g

20T
- Voltage : 7.4V (2S Lipo)
- No-load RPM : 8000±12%
- No-load Current : <1.12A
- Pluggging Current : 4.3-17.3A
- Shaft : 3.175*12mm
- Turn : CCW
- Weight : 215g

Package :
1x 550 brushed motor
1x 80A brushed ESC

Contact our customer service if further information is needed.
