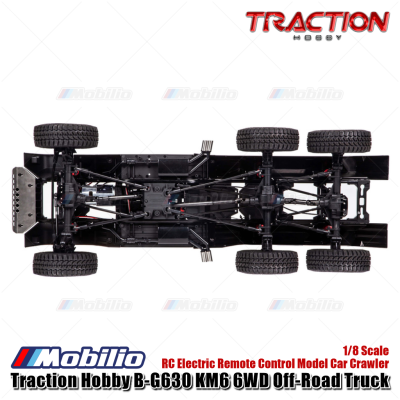

Traction Hobby B-G630 KM6 6WD Off-Road Truck 1/8 Scale RC Electric Remote Control Model Car Crawler

Traction Hobby B-G630 KM6 6WD Off-Road Truck 1/8 Scale RC Electric Remote Control Model Car Crawler

BG630 6X6 CLIMBING CONFIGURATION DETAILS
- Brand : Traction Hobby (TH)
- Model : BG630 1:8 climbing
- Color : Grey (ready)
- Battery size : Maximum battery size 150*46*40mm
- Body size (packing) : 772x280x300mm (930x320x340mm)
- Wheelbase mm : 400mm+140mm
- Track : 237.5mm
- Minimum ground clearance : 50mm
- Approach/pass/departure angle. : 47.5°/43°/43.5°
- Net weight/gross weight/volume weight : 8.5KG/11.2KG/22KG

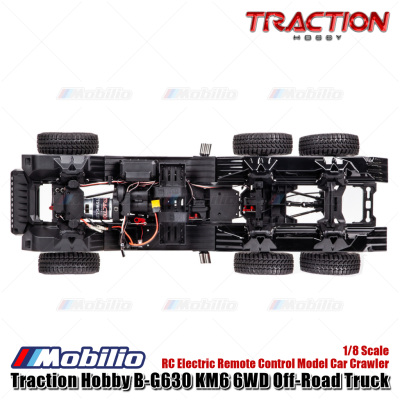

Body structure, technical parameters

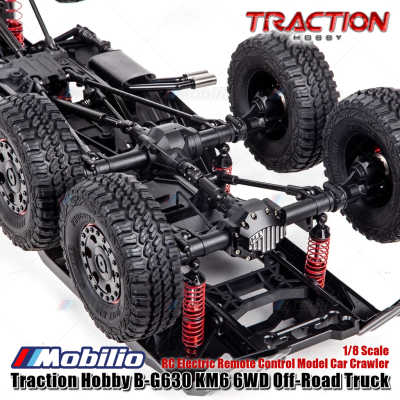

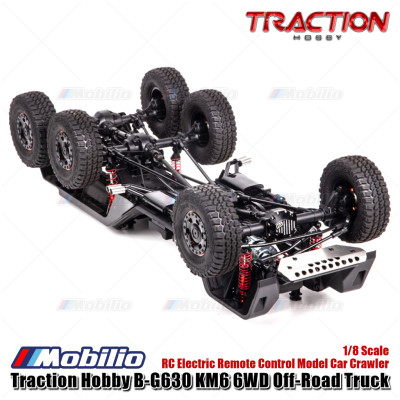

- Axle : Front, middle and ear door bridge structure, the middle - Plastic bridge shell metal (CNC) simulation bridge cover
- Motor gear : Motor gear 12-20T, adjustable tooth gap, factory standard 14T
- Drive/gearbox : Two-speed transmission, reverse transmission, front drive, rear drive, four-wheel drive integrated gearbox
- Transmission structure : Metal gear, 7mm : metal drive shaft
- Steering system : Multi-link metal steering structure - Servo pull type, 23Kg high-pressure servo, 25T metal servo arm
- Reinforced metal structure : The whole car has Tmm StaIess steel balls, mm metal pull ods, metal gears, front and rear axle reinforced steel drive shafts

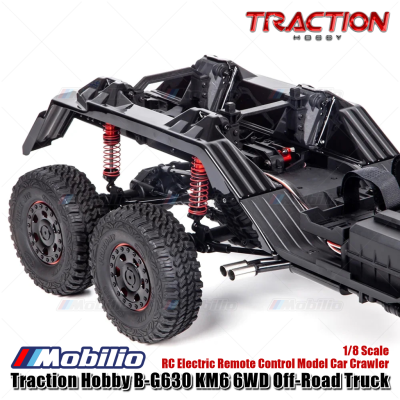

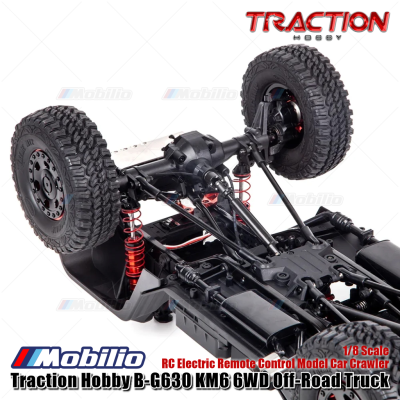

- Shock absorber : Multi-hole shock absorber bracket, 102mm coilover metal large-capacity shock absorber

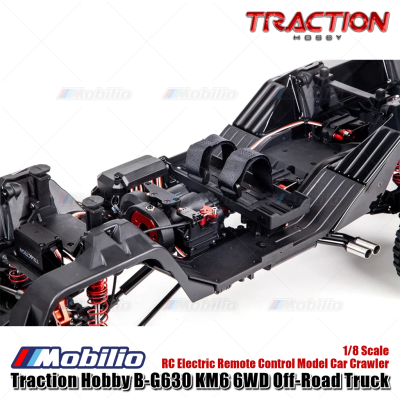

- Thickened body : 1.5mm steel C-beam, 1.5mm PC fender; - body shell 1.5mm PC, sunken rear bucket
- Tire/wheel : 22-inch metal simulation wheel hub - Tire specification 4.7x1.6R2.2 (120mm diameter x 41mm width)

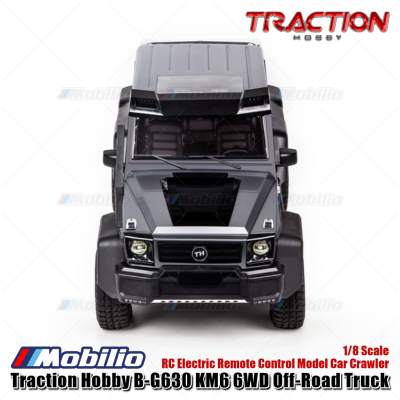

- Body simulation : Front and rear bumpers, wheel lintels, air intake les, bull rails, pedals, sun visors, rearview mirrors, front and rear wipers, door handles, body trim, wading hose, rear bucket gantry, simulated light set. Simulated car shell, quick-release structure

Electronic configuration

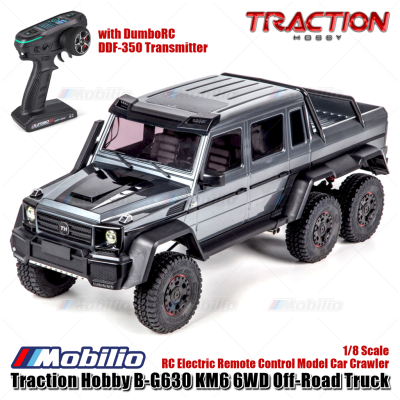

- Remote control : DumboRC DDF350 10 Channel
- Motor/ESC : 775 Brushed Motor / Hobbywing 880 (BEC 7.4V)
- Servo : THI623HV metal steering servo 1* with metal steering arm - TH1036HV high voltage digital function servo *5
- Simulation light set LED simulation patch, customized light set
- Vehicle Battery : 2-4S Li-Po (Recommend 3S 5000mAH Li-Po, Not Include)

Contact our customer service if you need more information.
