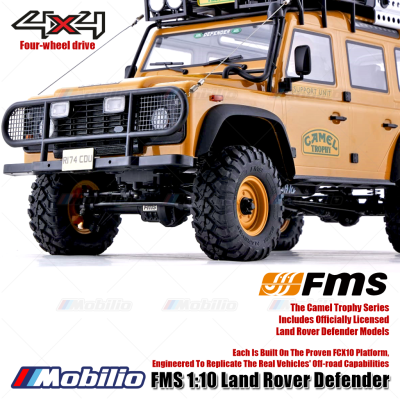

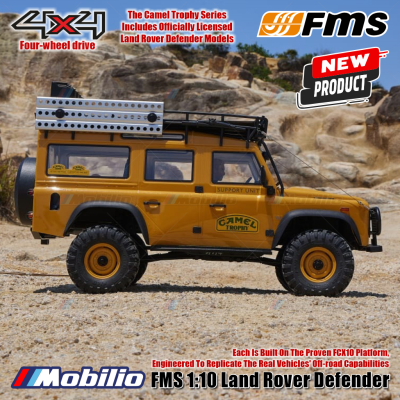

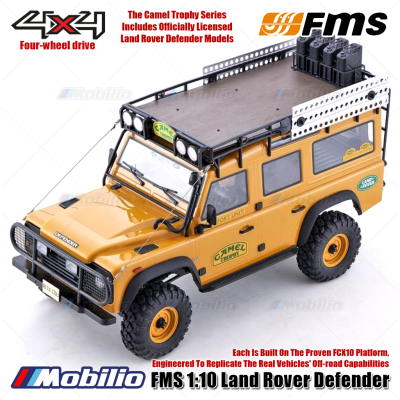

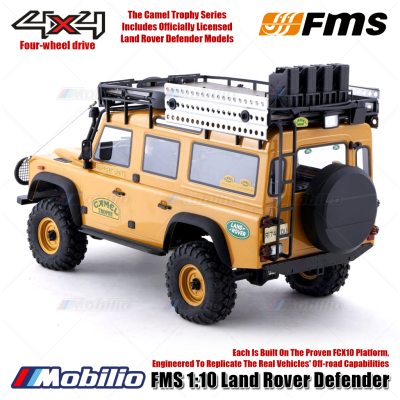

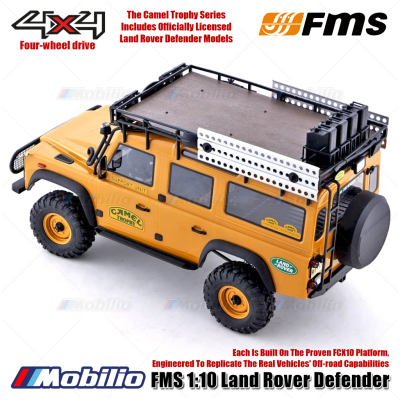

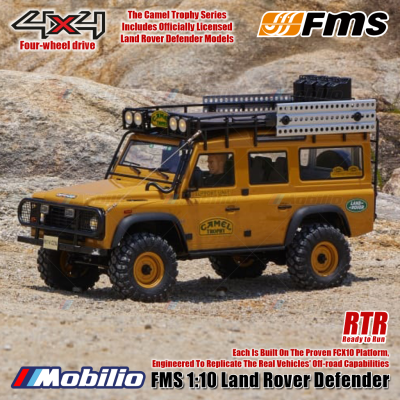

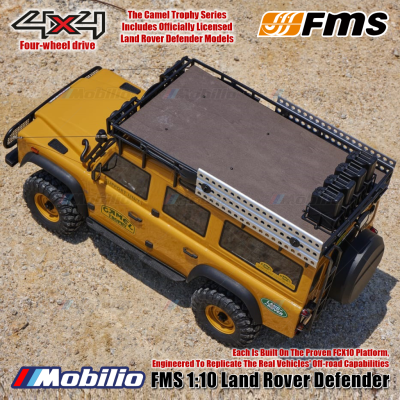

FMS 1:10 Land Rover Defender FCX10 Platform 4x4 RTR 2.4GHz RC Crawler Adventure Remote Control

FMS 1:10 Land Rover Defender FCX10 Platform 4x4 RTR 2.4GHz RC Crawler Adventure Remote Control

Continuing its passion for off-roading, FMS introduces three 1/10 scale Land Rover Camel Trophy series crawlersdesigned for RC enthusiasts who love the Land Rover legacy. With a focus on scale accuracy and solid performance, these models deliver an authentic and enjoyable experience on the trail.

The Camel Trophy series includes officially licensed Land Rover Defender, Range Rover, and Discovery models. Each is built on the proven FCX10 platform, engineered to replicate the real vehicles' off-road capabilities.

The bodies are molded from durable PC soft plastic using vacuum-forming and come equipped with scale details like side mirrors, snorkels, and clear windows that reveal a fully detailed interiorcomplete with dashboard and driver figure. Roof racks, working spotlights, and accessories such as oil drums, shovels, axes, pickaxes, and a rear ladder add realism. Pre-installed headlights and reverse lights come standard.

A patented quick-release body mount simplifies assembly and disassembly while using magnetic light connections to reduce wire clutter and keep the system protected from dirt and debris. Mudguards are also factory-installed to help keep the chassis clean during rough runs.

Underneath, the FCX10 chassis features a front-center motor layout and four-link suspension. Straight axles at the front and rear improve traction and stability. The combined motor and transmission unit sits low in the chassis to reduce the center of gravity and minimize rollovers. A waterproof metal-gear servo mounted beside the battery tray controls the two-speed transmission.

Just bring your sense of adventureFMS will handle the rest.

 Features :
- Realistic Scale Body Shells
- Themed Accessory Packs for Different Looks
- Swappable Body Shell System
- Officially licensed Land Rover body
- Scale interior with driver figure
- Transmitter-controlled multi-function LED lights
- Durable front bumper
- Realistic solid axle setup
- Patented quick-release body system
- Magnetic light connections
- Metal oil-filled shocks
- All-metal gear drivetrain
- Full set of ball bearings
- Includes detailed scale accessories
- Interchangeable body designcompatible with all models in the series

 Specifications :
- Factory Configuration : RS (No battery, includes 1x remote receiver, 1x manual)
- Motor Type & Model : Brushed 550 32T
- Battery Model : Not included, Recommended: 2S 5000mAh, 3S 5000mAh
- Battery Compartment Size : 140*47*40mm / 170*47*40mm (after removing receiver)
- Runtime : 30min (3S 5000mAh 35C)
- Speed/Max Speed : 10km/h / 22km/h
- Vehicle Dimensions (LWH) Defender : 577*243*337
- Wheelbase : 321mm
- Track Width : 203mm
- Approach Angle Defender : 48°
- Departure Angle Defender : 39°
- Breakover Angle Defender : 46°
- Ground Clearance Defender : 62mm
- Steering (2WS/4WS) : Front 2WS
- Max Steering Angle : 45°
- Max Climbing Angle : 60° (artificial turf)
- Tires Defender : 110mm
- Wheels (Dia. & Width) : 66mm, 26mm
- Wheel Hex Hub Size : 12mm
- Waterproof : Splash-proof

 Body & Appearance
- Color : Yellow
- Body Type : PC Vacuum Formed Lexan Body
- Body Licensed : Licensed
- Other Body Features : Lexan Body + Plastic Parts
- Body/Chassis Mounting : FCX10 Quick Release 4.0 + Magnetic Power Connection
- Lights : Headlights, Reverse Lights, Front/Rear Turn Signals, Roof Spotlights
- Light Effects : Headlights: Solid White; Taillights: Red; Turn Signals: Flashing Amber; Spotlights: Warm Yellow

Chassis Structure
- Frame Rail : Metal Frame Rails
- Suspension : 4-Link Suspension
- Chassis Rods : Metal Link Rods x8
- Shock Absorbers : Aluminum Threaded Hydraulic Shock Absorbers
- Full Vehicle Bearings : 25 pcs, Ball Bearings
- Straight Axle : Front & Rear Straight Axles
- Drive Type : 4WD

 Power System
- Motor Pinion Gear Material : Metal Motor Pinion Gear
- Motor : 550 Brushed Motor 32T
- Motor Pinion Tooth Count : 10T
- Motor Pinion Module : 0.8P
- Spur Gear : 47T
- Spur Gear Module : 0.8P

 Drivetrain
- Drive Shaft Material : Metal Drive Shafts
- Differentials : None
- Solid Axle

 Gearbox System
- Servo Type : Gear Shift Servo: 13G Full Metal Gear Splash-Proof Digital Servo ×1
- Gearbox Gear Material : Metal Gearbox Gears

 Steering System
- Steering Linkage/Rods : Metal Steering Linkage
- Steering Servo Horn : Metal Steering Servo Horn
- Steering Servo : Coreless 25KG Full Metal Gear, 25.5Kg.cm, Splash-Proof Digital Servo ×1

 ESC Remote, Rx & ESC
- Transmitter Model : MG6 6-Channel
- ESC & Receiver Model : R6D-ESC-BS Brushed ESC Combo 60A
- Light Controller Model : DB01 PWM INPUT (Independent Light
- Max Control Distance : Transmitter supports control distance >150M in open areas

Other
- Packaging : Cardboard Tray + Color Sleeve + Master Carton 1 Unit per Master Carton (1 Box)

Packages :
1x FMS 1:10 Land Rover Defender Set (Not included Battery)

Contact our customer service if you need more information.
