LC Racing PTG-1 1/10 4WD Off Road Buggy Chassis Assembled LC Racing #PTG-1H, PTG-1HBU, PTG-1HRD

LC Racing PTG-1 1/10 4WD Off Road Buggy Chassis Assembled
LC Racing #PTG-1H, PTG-1HBU, PTG-1HRD

Description
LC Racing is excited to present to the market their entry level 1/10th scale 4x4 Off Road Buggy - the PTG-1
Based on an all new platform, the PTG-1 does share some suspension parts and geometry from the LC10B5. The PTG-1 comes as a factory built roller without any electronics and features a single main shaft, driven directly by the rear mounted motor. It also comes as standard with some of the competition parts from the LC10B5 like the front & rear high capacity oil filled gear diffs and front & rear CVDs. Other features include a hardened aluminium chassis with front kickup, fully sealed drivetrain with easy diff access and front 4mm & rear 3.5mm fibre composite shock towers.

Features :
- Single prop shaft drivetrain layout
- LC10B5 Suspension system (same materials)
- LC10B5 F&R Hi Capacity Oil Filled Gear Diffs (same materials)
- LC10B5 F&R CVDs (same materials)
- Hardened Alum chassis with front kickup
- Fully sealed drivetrain with easy diff access gearboxes
- Accommodates standard full size lipo or 6 cell Sub-C size battery
- Front 4mm & Rear 3.5mm Fibre composite shock towers
- Integrated servo saver bellcrank
- Harderend alum threaded oil filled shock bodies
- Standard 12mm wheel hex adaptors
- Batan D225F Digital Metal Gear Servo included
- LC Racing Designed off road tires (pre-mounted)
- Heavy duty 32 Pitch 53 Tooth Spur gear
- Heavy duty 32 Pitch 13 Tooth Pinion gear

Specifications :
- Scale : 1/10
- Class : 4WD Off Road
- Length : 395mm
- Wheel Base : 285-290mm
- Internal reduction : 2.5
- Ball bearings : Full Set

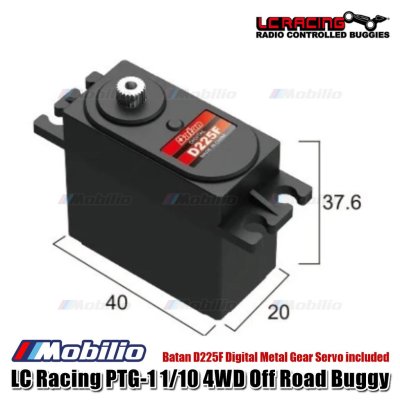

Servo Specs
- Model : Batan D225F Digital
- Size : 40x20x37.6mm
- Weight : 52g
- Torque : 18Kg (6v), 15Kg (4.8v)
- Speed : 0.15sec/60°
- Motor : 3-Pole
- Gears : Metal
- Bearings : Dual

You will need :
- 540-size electric motor
- Electronic Speed Controller
- Battery packs (6 Cell Sub-C SIZE) and charger
- 2-channel transmitter & receiver

Contact our customer service if you need more information.
