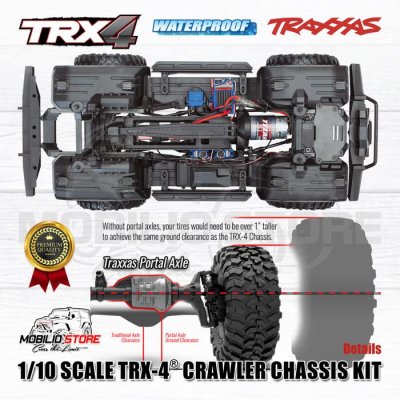

Traxxas 82016 TRX4 TRX-4 Crawler Chassis Kit + Electronic 1/10 Scale Truck

TRX-4 Technology and Innovation-Now Available as a Kit!

Specification :
- Length: 20.57 inches (523 mm)
- Front Track: 9.78 inches (249 mm)
- Rear Track: 9.78 inches (249 mm)
- Ground Clearance: 3.14 inches (80 mm)
- Weight: 102.72 ounces (2.91 kg)
- Height: 10.47 inches (266 mm)
- Wheelbase: 12.28 inches (312 mm)
- Front Shock Length: 3.54 inches (90 mm)
- Rear Shock Length: 3.54 inches (90 mm)
- Approach Angle: 63.82°
- Departure Angle: 43.22°
- Breakover Angle: 59°
- Front Wheels: 1.9 x 1.02 inches (49 x 26 mm)
- Rear Wheels: 1.9 x 1.02 inches (49 x 26 mm)
- Front Tires: 4.64 x 1.89 inches (118 x 48 mm)
- Rear Tires: 4.64 x 1.89 inches (118 x 48 mm)
- Wheel Hex: 12 mm
- Speed Control: XL-5 HV
- Motor (electric): Titan® 21T reverse rotation
- Differential Type: 4 gear, remote locking
- Transmission: 2-speed Hi-Lo, remote shifting
- Gear Pitch: 32
- Chassis Structure/Material: Steel ladder frame with Nylon composite cross members
- Brake Type: Electronic Hill Hold
- Drive System: Shaft-driven 4WD
- Steering: Chassis mounted 2075X metal gear servo
- Radio System: TQi 2.4 GHz 4-channel transmitter with #6533 receiver
- Battery Tray: 158.75 mm L x 47 mm W x 23/26 mm H

WHAT YOU'LL NEED:
- TRX-4 compatible body (312 mm)
- 4 AA alkaline batteries
- Battery with Traxxas High-Current Connector
- 6 or 7 cell NiMH battery pack
- 2s or 3s LiPo battery pack
- Battery charger
- Metric hex drivers 1.5 mm, 2.0 mm, 2.5 mm
- Basic hand tools
- screwdrivers, needle nose pliers
- Tire Glue or CA glue
- Safety glasses

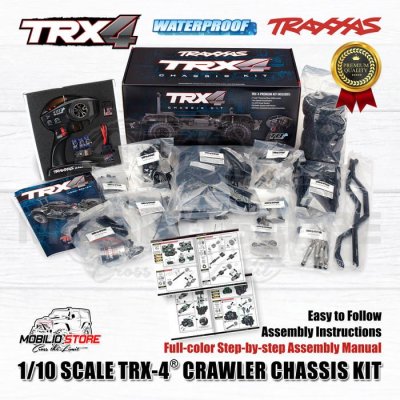

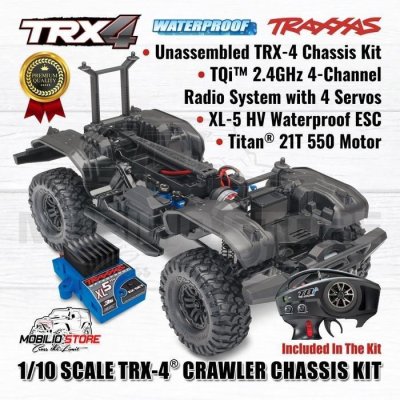

INCLUDED IN THE KIT­:
- Unassembled TRX-4 Chassis Kit
- TQi 2.4GHz 4-channel radio system with 4 servos
- XL-5 HV waterproof ESC
- Titan® 21T 550 motor
- Full-color step-by-step assembly manual
