Power HD GTS 5 HV Low Profile Brushless Servo - 50kg - 0.08s #GTS-5

Power HD GTS 5 HV Low Profile Brushless Servo - 50kg - 0.08s

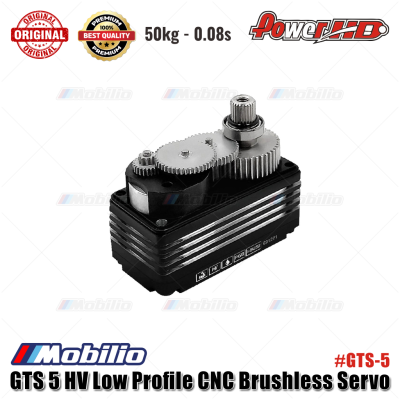

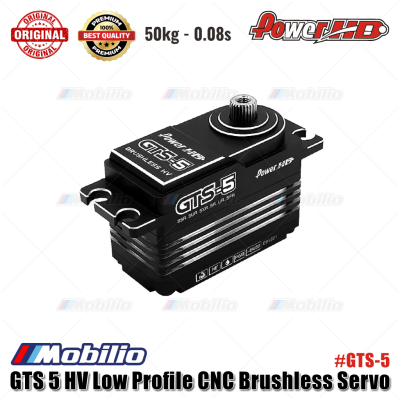

The Power HD GTS-5 HV CNC Brushless Digital Servo (HD-GTS-5) delivers outstanding torque and speed in a low profile form factor. Offering up to 50.0 kg-cm torque with a 0.08 s transit time at 8.4 V, it is built around a four-pole brushless motor, dual ball bearings and 7075+steel gears for fast response and long service life. The GTS-5 supports FLYSKY i-BUS2 for servo parameter setup, data logging and warnings, and works with the high-speed modes of leading radios.

Key Features
- HV CNC brushless digital servo with four-pole brushless motor
- Low profile size : 41.0 × 20.0 × 29.0 mm
- Supports FLYSKY radio i-BUS2 protocol for setup, data logging and warnings
- Supports high-speed radio modes:
    - Noble NB4 Pro : NOR / SR / SFR
    - Futaba : NOR / SR / UR
    - SANWA : NOR / SHR / SSR / SUR / SXR
- Dual ball bearings
- 7075+steel gear train
- Compatible with Power HD program box PG-CB63

Performance Specifications
- Torque : 36.0 kg-cm (6.0 V) / 42.0 kg-cm (7.4 V) / 50.0 kg-cm (8.4 V)
- Speed : 0.11 s (6.0 V) / 0.09 s (7.4 V) / 0.08 s (8.4 V)
- Operating voltage : 6.08.4 V DC
- Max current : 7.5 A
- Working frequency : 1520 / 1666 Hz
- Operating temperature : 20 to 60 °C
- Size : 41.0 × 20.0 × 29.0 mm
- Weight : 63 g
- Bearing type : Ball bearing ×2
- Motor type : Brushless
- Gear type : 7075+Steel

With high-voltage capability, rapid response and extensive radio mode support, the Power HD GTS-5 provides a robust, low profile solution for demanding RC applications where compact size, strength and precision are essential.
