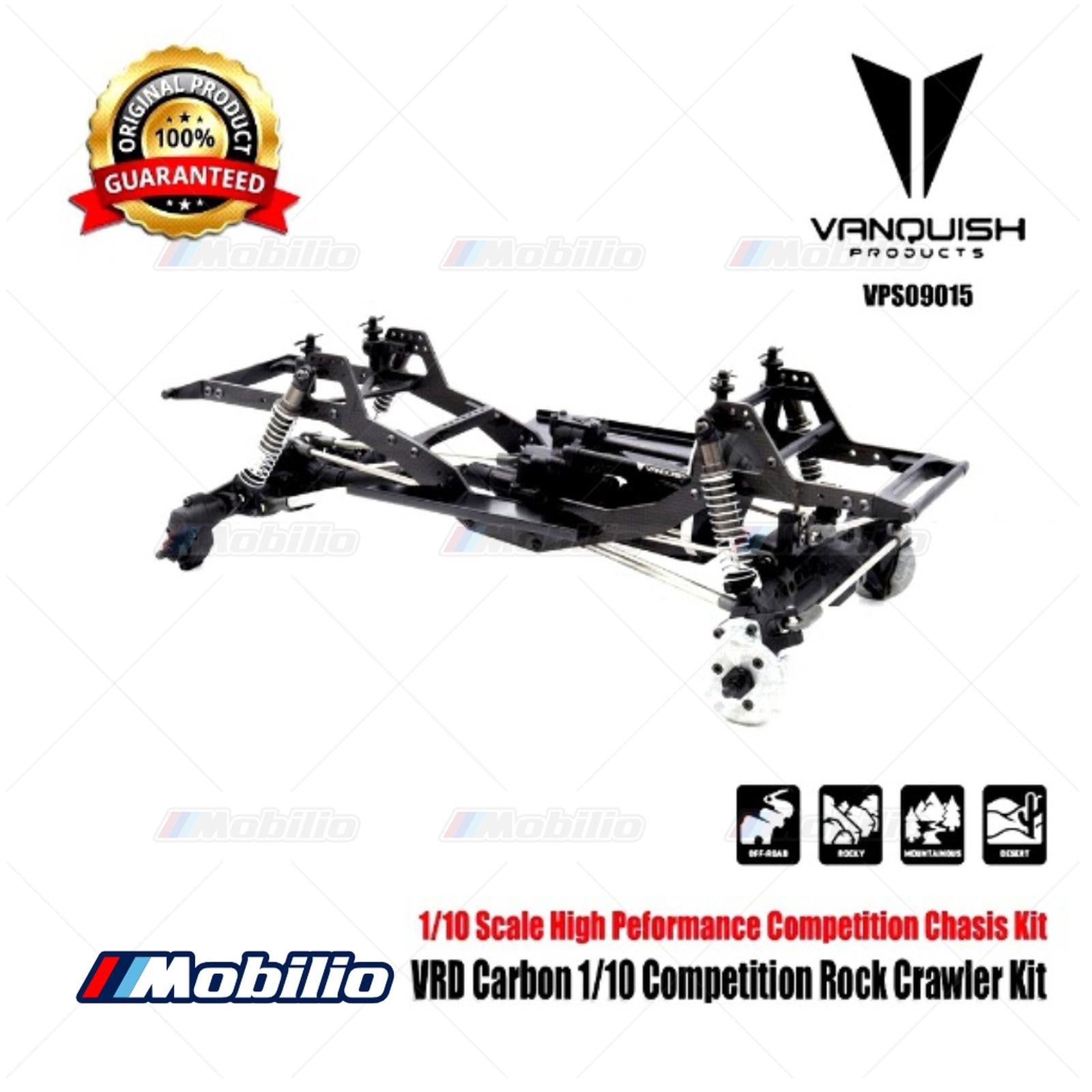

Vanquish VRD Carbon Competition Rock Crawler Kit RC 1/10 Scale
Vanquish VRD Carbon Competition Rock Crawler Kit RC 1/10 Scale
Vanquish VS4-10 VRD Carbon Competition Rock Crawler Kit RC 1/10 Scale
Features :

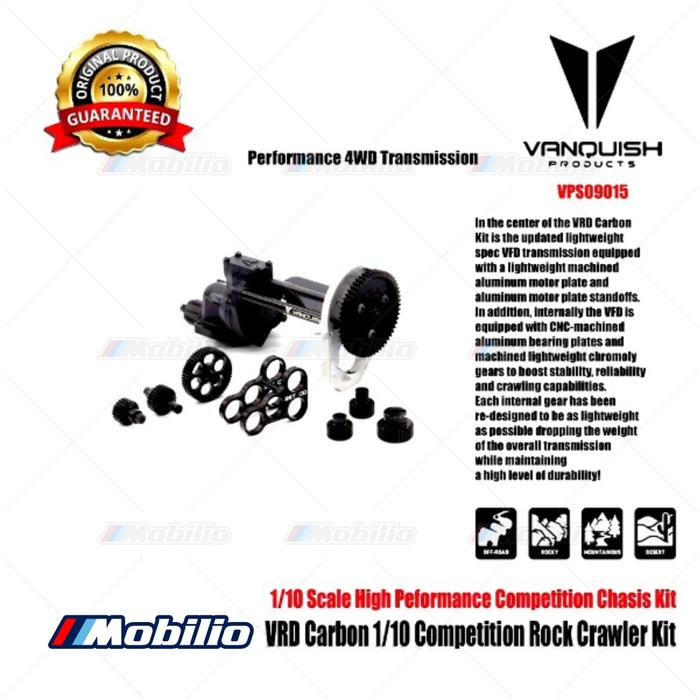

- Lightweight Spec VFD Transmission

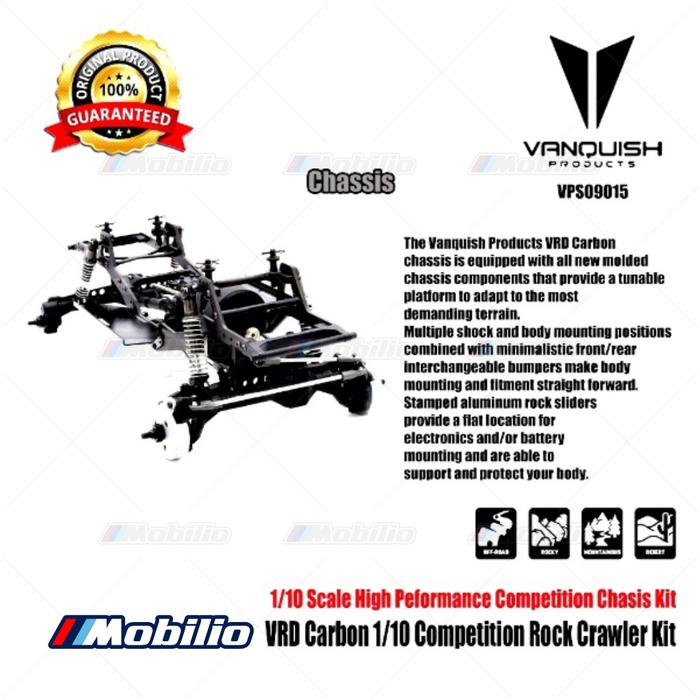

- Carbon Fiber Frame Rails with 6-degree flat skid plate
- F10 Portal Axles
- Overdrive Axle Gears (Front)
- Lightweight Machined Chromoly Transmission Gears
- Chromoly Universal Axle Shafts
- Hard Anodized Shock Bodies
- Stainless Steel Links with HD Bent Rear Links
- Aluminum Rock Sliders
- Adjustable Multi-point Body Mounting System
Completion Notes :
In the hardware bag, there are two 22mm long screws mixed into the 20mm screws. These 22mm screws are used for the rear upper shock mounts.
Specifications :
- Scale Size : 1:10 Scale
- Length : -
- Width : 7.87"in (200mm)
- Height : -
- Wheelbase : 12.67"in (322mm)
- Weight : -
- Ratios :
Β - Front Axle : 5.25:1
Β - Overall Front : 46.5:1
Β - Rear Axle : 6.25:1
Β - Overall Rear : 68:1
- Final Overdrive : 37%
- Completion Level Kit*
Needed To Complete :
- 3+ Channels Transmitter/Receiver system
- Compatible steering servo (Included is a 25T spline 20mm Servo Horn)
- ESC (Electronic Speed Controller)
- 540 size motor
- 2-4S (7.4V - 22.2V) LiPo Battery (35x35x100mm) or smaller
- Compatible battery charger
- 4x 1.9 Wheels (Vanquish Products or SLW Hub Compatible wheels required)
- 4x 1.9x4.75β Tires (recommended)
- Comp Style Body
- Assembly tools and polycarbonate paint
Includes :
- VRD Carbon 1/10 Competition Rock Crawler Kit
- 25T spline 20mm Servo Horn
